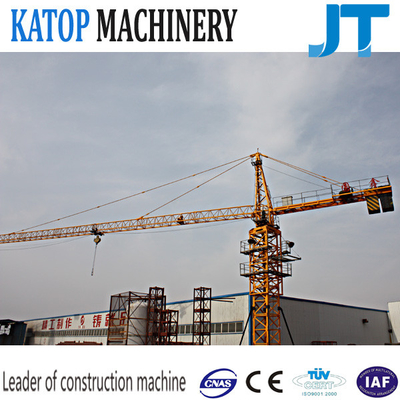

Tower crane 5t load QTZ63-TC5010 with low price for Peru

Tower crane 5t load QTZ63-TC5010 with low price for Peru

    • Tower crane 5t load QTZ63-TC5010 with low price for Peru
    • Tower crane 5t load QTZ63-TC5010 with low price for Peru
    • Tower crane 5t load QTZ63-TC5010 with low price for Peru
    • Tower crane 5t load QTZ63-TC5010 with low price for Peru
  • Tower crane 5t load QTZ63-TC5010 with low price for Peru

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Katop
    Certification: CE, ISO9001
    Model Number: QTZ63-5010 Double-gyration

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: $29,000.00~32,800.00
    Packaging Details: Nude packed, well fixed, uninstalled
    Delivery Time: About 20~30 workdays after receipt the deposit;
    Payment Terms: 30%TT in deposit, the balance 70%TT before shipment or by LC at sight
    Supply Ability: 30units/month
    Contact Now
    Detailed Product Description

    Katop Machinery

    With more than 10 years experience of producing construction hoist and tower crane , Shandong Katop Machinery factory can supply you the good products with excellent quality, reasonable price and good after-sale service.

    Product Specifications

    1. Lifting height 36 m, loading capacity 1ton to 5tons, long jib length 50 m

    2.Factory supply, low price and excelent quality, with adhered section optional

    3.Installation support including oversea service, help customers to install and adjust the production well

    4.Good after-sales service with 1 year warranty and in time supply of spare parts

    Advantages:

    1.Elements from Schneider are adopted in electrical system, performance of which is stable and reliable.

    2. Main ports of tower crane is welded with CO2 gas protected welding and full-auto submerged arc welding

     that makes the stability of the whole machine be improved considerably.

    3. The whole machine runs stably with good adjustable performance.

    4.High working speed and efficiency, great speed-adjustment performance, and stable running;

    5.Wide working range, various working methods, and great applicability;

    6.The whole machine is of reasonable arrangement and beautiful in design;

    7.Complete safety devices, all mechanism are equipped with brake device to ensure the safe and reliable running.

     Main Technical Parameters of YX63 (5010 Double-gyration) Tower Crane

    Name

    Unit



               Value



    Rated load moment

    kN.m



    630



    Max.rated load capacity

    t



    5



    Working radius

    m



    3~50



    Rated load capacity at max.radius

    t



    1



    Hoisting height



    Freestanding



    m



    30



    Attaching

    Double rate

    m



    120



    Quadruple rate

    m



    60



    Tail slewing radius

    m



    11.8



    Counterweight

    t



    10.2



    Crane weight(not including counterweight and ballast)

    t



    25.5





    Tower crane 5t load QTZ63-TC5010 with low price for Peru

    Tower crane 5t load QTZ63-TC5010 with low price for Peru

    (1) Hoisting mechanism: Matching with frequency tansforming & mulipolar dynamo resistivity for timing. Stably

    shifting impules the electric fence gently. Multipolar dynamo works stably, it is simple and economic with gentle

    impulsive currency when starting and shifting.

    (2) Trolley mechanism: Frequency transformer and wire wrapping motor can be applied to conduct speed

    regulating.It is economic and convenient to operate.

    (3) Slewing mechanism: Frequency transformer and wire wrapping motor can be applied to conduct speed

    regulating.



    The jacking mechanism

    The jacking mechanism specification

    Climbing mechanism



    Climbing speed



    m/min



    0.5



    Hydraulic system rated working pressure



    MPa



    25



    Motor type



    /



    Y132M-4



    Power



    kW



    7.5



    Rotating speed



    r/min



    144







    The trolleying mechanism

    The trolleying mechanism specification

    Trolley mechanism



    Trolley speed



    m/min



    38.6/25.2



    Motor type



    /



    Y132M-4/6



    Power



    kW



    2.2/1.5



    Rotating speed



    r/min



    1440/960










    tower crane-600.jpg

    The slewing mechanism

    The slewing mechanism specification

    Slewing mechanism



    Rotating speed



    r/min



    0.62



    Motor type



    /



    YZR132M-6



    Power



    kW



    3.7



    Rotating speed



    r/min



    90





    The lifting mechanism

    The lifting mechanism specification

    Hoisting mechanism



     Hoisting speed



    Rate



    /



    α=2



    α=4



    Speed



    m/min



    9



    35



    70



    4.5



    17.5



    35



    Max.load capacity



    t



    2



    2



    1



    4



    4



    2



    Motor type



    /



    YZD200L1-4/8/24



    Power



    kW



    4/15/15



    Rotating speed



    r/min



    1440/720/22





    The parts of tower crane

    Main Parts600.jpg

    Construction site

    construction site600.jpg

    Delivering of Katop Tower Crane:

    1.Short delivery time, normally within 30workdays;

    2.All products will be well fixed;

    3.More easy wear spare parts will be attached for free;

    4.The transportation will be safe and stable;

    Service

    1.All of our machines will be with 1 year warranty after receipt the destination port;

    2.More easy ware spare parts will be attached for free;

    3.Oversea service are available from us, our experts will help you to install and adjust the tower crane

    in your area;

    4.Technology support for maintenance and maintenance spare parts will be supplied in time;



     images (1)



    Why Choose US?



    1. Experience. More than 10 years of experience in manufacturing tower crane and construction hoist, assured good

    quality.



    2. Price. We supply factory direct price, will save your cost than buy from distributors or other factories;



    3.Excellent quality. All materials from famous plants to ensure the long time use and safety, and we are one of the

    suppliers of standard mast for XCMG.



    4. Services. Professional service team can give powerful support for our products. Engineers have more than 10

    years' experience in products and ready to solve all your problems.



    5. Innovation. Technical and management innovation guarantee our quality to be in top position in our industry.
