Place of Origin: | Shandong, China |
Brand Name: | Katop |
Certification: | CE, ISO9001 |
Model Number: | QTZ80-5610 Double-gyration |
Minimum Order Quantity: | 1 UNIT |
---|---|
Packaging Details: | Nude packed, well fixed, uninstalled |
Delivery Time: | About 30-50workdays after receipt the deposit; |
Payment Terms: | 30%TT in deposit, the balance 70%TT before shipment or by LC at sight |
Supply Ability: | 60units/month |
Specifications
1. Lifting height 41m, loading capacity 6t, long jib length 56m
2.Factory supply, low price
3.Installation support
4.Good after-sales service

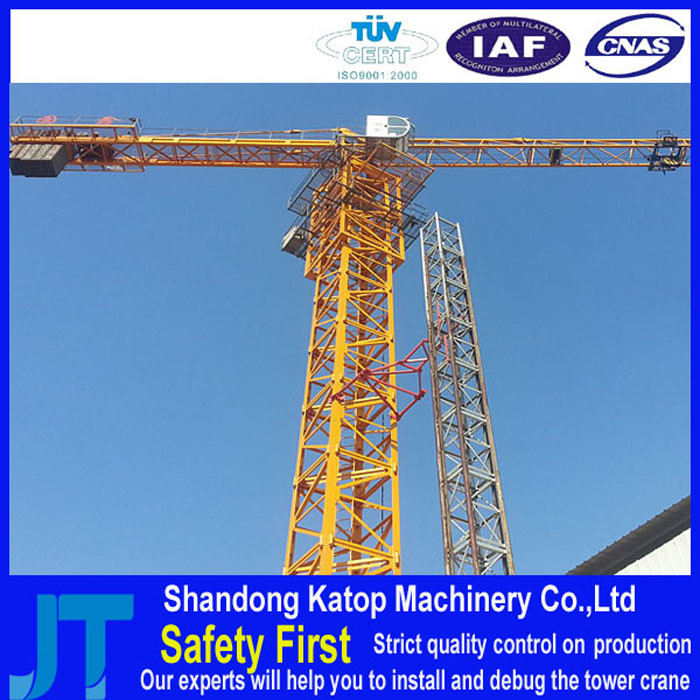

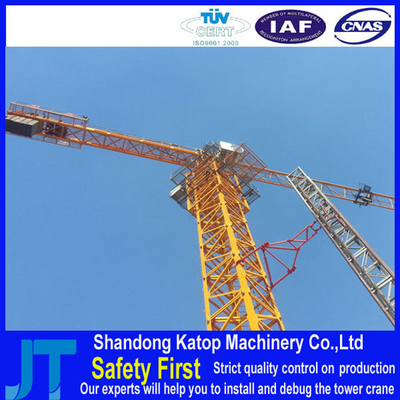

Main Technical Parameters of QTZ80(5610 Double-gyration) Tower Crane
Name |
Unit |
Value |
||
Rated load moment |
kN.m |
800 |
||
Max.rated load capacity |
t |
6 |
||
Working radius |
m |
3~56 |
||
Rated load capacity at max.radius |
t |
1 |
||
Hoisting height |
Freestanding |
m |
41 |
|
Attaching |
Double rate |
m |
151 |
|
Quadruple rate |
m |
76 |
||
Counterweight |
t |
15.6 |
||
Motor total power |
kw |
39.6 |
A.The trolleying mechanism
The trolleying mechanism specification
Trolleying mechanism |
Derricking speed |
m/min |
39/27 |
Brake motor |
/ |
YDEJ123S-4/8 |
|
power |
kW |
3.2/2.2 |
|
the trolleying speed: |
m/min |
44/22
|
The slewing mechanism specification
Slewing mechanism |
Slewing speed |
r/min |
0.62 |
Motor type |
/ |
YZR132M-6 |
|
Power |
kW |
3.7 x 2 |
|
Rotating speed
|
r/min |
908 |
The lifting mechanism specification
Lifting mechanism |
Motor type |
/ |
YZTD225-4/8/32 |
power |
kW |
24/24/5.4 |
The jacking mechanism specification
Jacking mechanism |
Jacking speed |
m/min |
0.4 |
Working Pressure |
MPa |
25 |
|
Motor type |
/ |
Y132M-4B5 |
|
power |
kW |
5.5 |
