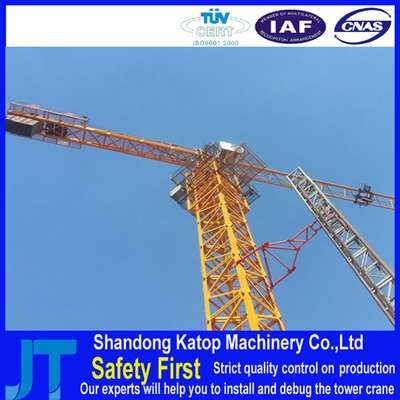

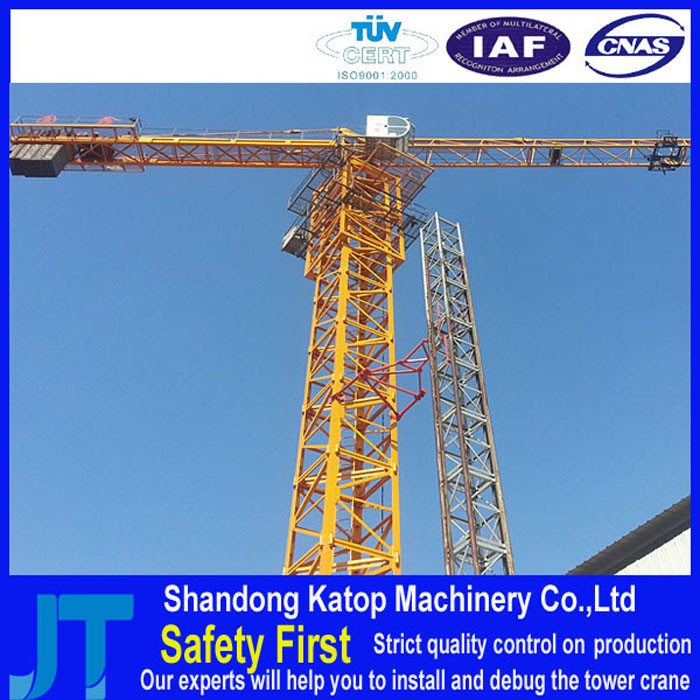

10T QTZ160-6515Double-gyration large construction tower crane

10T QTZ160-6515Double-gyration large construction tower crane

    • 10T QTZ160-6515Double-gyration large construction tower crane
    • 10T QTZ160-6515Double-gyration large construction tower crane
    • 10T QTZ160-6515Double-gyration large construction tower crane

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Katop
    Certification: CE, ISO9001
    Model Number: QTZ160-6515Double-gyration

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Packaging Details: Nude packed, well fixed, uninstalled
    Delivery Time: About 30-50workdays after receipt the deposit;
    Payment Terms: 30%TT in deposit, the balance 70%TT before shipment or by LC at sight
    Supply Ability: 60units/month
    Contact Now
    Detailed Product Description

    Specifications
    1. Lifting height 50m, loading capacity 10t, long jib length 65m

    2.Factory supply, low price

    3.Installation support

    4.Good after-sales service

    Main Technical Parameters of  QTZ160(6515Double-gyration) Tower Crane



    Name

    Unit

               Value

    Rated load moment

    kN.m

    1200

    Max.rated load capacity

    t

    10

    Working radius

    m

    3~65

    Rated load capacity at max.radius

    t

    1.5

    Hoisting height

    Freestanding

    m

    50

    Attaching

    m

    180

    Hoisting speed

    a=2

    m/min

    80/40

    a=4

    40/20

    Counterweight

    Freestanding

    t

    54.515

    Attaching

    112.37

    Motor total power

    kw

    60.5

    10T QTZ160-6515Double-gyration large construction tower craneA.The trolleying mechanism10T QTZ160-6515Double-gyration large construction tower crane

    The trolleying mechanism specification



    Trolleying mechanism

    Derricking speed

    m/min

    39/27

    Brake motor

    /

    YZTDE180M-4/8/24

    power

    kW

    5/3.7/1.1

    the trolleying speed:

     m/min

    58.6/29.3/8.79



     B.The slewing mechanism10T QTZ160-6515Double-gyration large construction tower crane

    The slewing mechanism specification



    Slewing mechanism

    Slewing speed

    r/min

    0.61

    Motor type

    /

    YZR160M1-6

    Power

    kW

    5.5 x 2

    Rotating speed



    r/min

    908

     C.The lifting mechanism10T QTZ160-6515Double-gyration large construction tower crane

    The lifting mechanism specification



    Lifting mechanism

    Lifting speed

    m/min

    80/40 m/min (2 fall)   40/20m/min (4 fall)

    Motor type

    /

    YZRDW250M-4/8

    power

    kW

    37/37

     D.The jacking mechanism10T QTZ160-6515Double-gyration large construction tower crane

    The jacking mechanism specification



    Jacking mechanism

    Jacking speed

    m/min

    0.4

    Working Pressure

    MPa

    25

    Motor type

    /

    Y132M2-4

    power

    kW

    7.5

     10T QTZ160-6515Double-gyration large construction tower crane
