Place of Origin: | Shandong, China |
Brand Name: | Katop |
Certification: | CE, ISO9001 |
Model Number: | QTZ80-5613 Double-gyration |
Minimum Order Quantity: | 1 UNIT |
---|---|
Packaging Details: | Nude packed, well fixed, uninstalled |
Delivery Time: | About 30-50workdays after receipt the deposit; |
Payment Terms: | 30%TT in deposit, the balance 70%TT before shipment or by LC at sight |
Supply Ability: | 60units/month |
Specifications
1. Lifting height 45m, loading capacity 8t, long jib length 56m
2.Factory supply, low price
3.Installation support
4.Good after-sales service

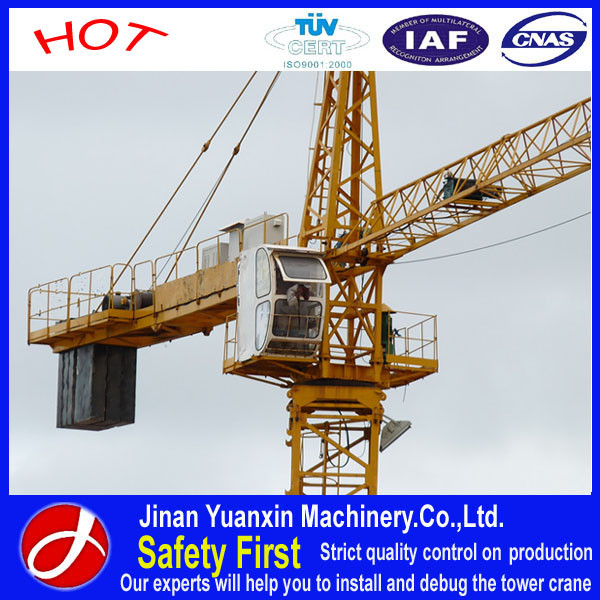

Main Technical Parameters of QTZ80(5613 Double-gyration) Tower Crane
Rated lifting torque |
kN.m |
800 |
||
Max. lifting capacity |
t |
8 |
||
Working range |
m |
3-56 |
||
Lifting Height |
Independent |
46.2 |
||
Adhered |
151.2 |
|||
Lifting speed |
Double magnification |
m/min |
80.4/41.0 |
|
Quadruple magnification |
39.4/20.1 |
|||
Slewing speed |
r/min |
0.62 |
||
Trolleying speed |
m/min |
43.3/21.9 |
||
Climbing speed |
0.4 |
|||
Min. stable descending speed |
≤7 |
|||
Outer size of whole crane |
Foundation frame |
m |
8×8 |
|
Overall height |
Independent |
55.892 |
||
Adhered |
160.892 |
|||
Tip of jib to the slewing center |
54.17 |
|||
Tip of balanced jib to slewing center |
13.39 |
|||
Total weight |
Structure weight |
Independent |
t |
46 |
Adhered |
86 |
|||
counterweight |
17.66 |
|||
Total motor capacity |
kW |
41.52 |
||
Allowed operating temperature |
C |
-26-+40 |
||
Power supply parameters |
50Hz |
-380V±10% |
A.The trolleying mechanism
The trolleying mechanism specification
Trolleying mechanism |
Derricking speed |
m/min |
43.3/21.9 |
Brake motor |
/ |
YDEJ132S-4/8B |
|
power |
kW |
4.5/3 |
|
the trolleying speed: |
m/min |
1450/720
|
The slewing mechanism specification
Slewing mechanism |
Slewing speed |
r/min |
0.62 |
Motor type |
/ |
YZR132V2-6 |
|
Power |
kW |
3.7 x 2 |
|
Rotating speed
|
r/min |
908 |
The lifting mechanism specification
Lifting mechanism |
Lifting speed |
m/min |
80.4/40.1 m/min (2 fall) 39.4/20.1 m/min (4 fall) |
Motor type |
/ |
YZRDW250M-4/8 |
|
power |
kW |
30/30 |
D.The jacking mechanism
The jacking mechanism specification
Jacking mechanism |
Jacking speed |
m/min |
0.4 |
Working Pressure |
MPa |
25 |
|
Motor type |
/ |
Y112M-5.5-B5 |
|
power |
kW |
5.5 |
