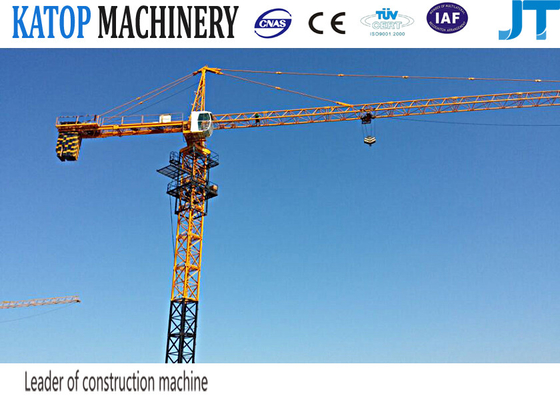

Cheap tower crane QTZ6515 crane with 1.5t~10t load
Specifications
1. Lifting height 50m, loading capacity 10t, long jib length 65m
2.Factory supply, low price
3.Installation support
4.Good after-sales service
Main Technical Parameters of QTZ160(6515Double-gyration) Tower Crane
|
Name
|
Unit
|
Value
|
|
Rated load moment
|
kN.m
|
1200
|
|
Max.rated load capacity
|
t
|
10
|
|
Working radius
|
m
|
3~65
|
|
Rated load capacity at max.radius
|
t
|
1.5
|
|
Hoisting height
|
Freestanding
|
m
|
50
|
|
Attaching
|
m
|
180
|
|
Hoisting speed
|
a=2
|
m/min
|
80/40
|
|
a=4
|
40/20
|
|
Counterweight
|
Freestanding
|
t
|
54.515
|
|
Attaching
|
112.37
|
|
Motor total power
|
kw
|
60
|

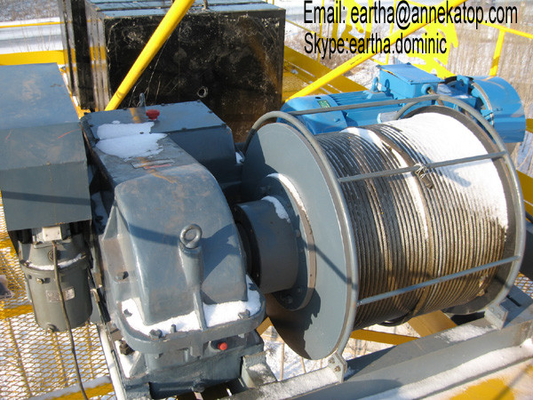

The parts of Katop tower crane

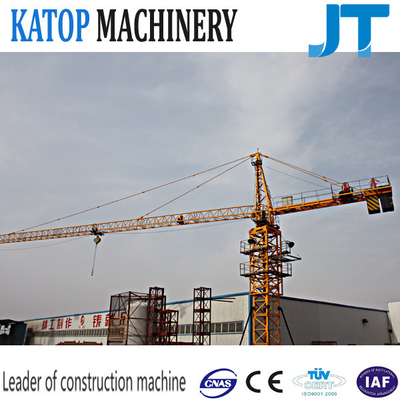

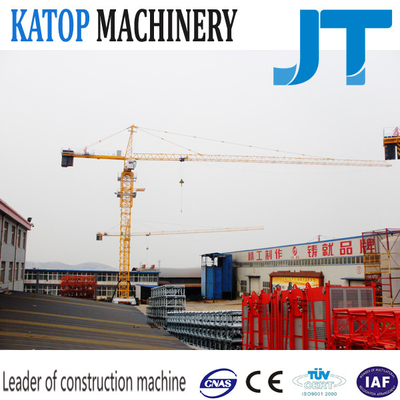

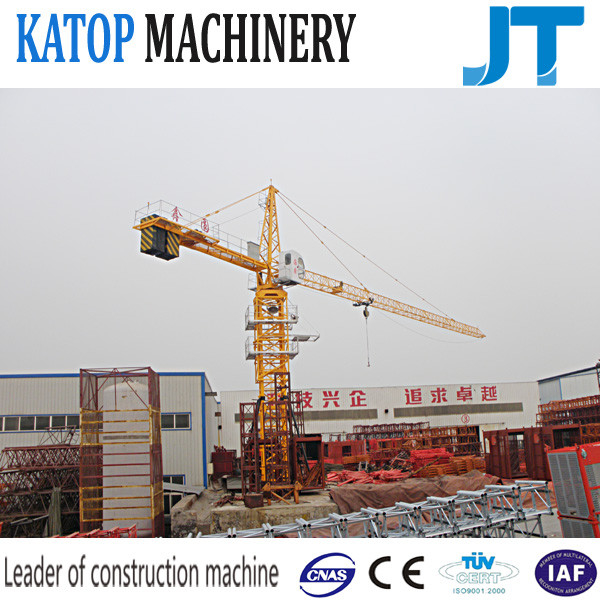

Construction site of Katop tower crane
Delivering of Katop Tower Crane:
1.Short delivery time, normally within 30workdays;
2.All products will be well fixed;
3.More easy wear spare parts will be attached for free;
4.The transportation will be safe and stable;
The Services of Katop Factory
1.All of our machines will be with 1 year warranty after receipt the destination port;
2.More easy ware spare parts will be attached for free;
3.Oversea service are available from us, our experts will help you to install and adjust the tower crane
in your area;
4.Technology support for maintenance and maintenance spare parts will be supplied in time;
Why Choose Our Factory?
1. Experience. More than 10 years of experience in manufacturing tower crane and construction hoist,
assured good quality.
2. Price. We supply factory direct price, will save your cost than buy from distributors or other factories;
3.Excellent quality. All materials from famous plants to ensure the long time use and safety, and we are
one of the suppliers of standard mast for XCMG.
4. Services. Professional service team can give powerful support for our products. Engineers have more
than 10 years' experience in products and ready to solve all your problems.
5. Innovation. Technical and management innovation guarantee our quality to be in top position in our
industry.
Our Certification
