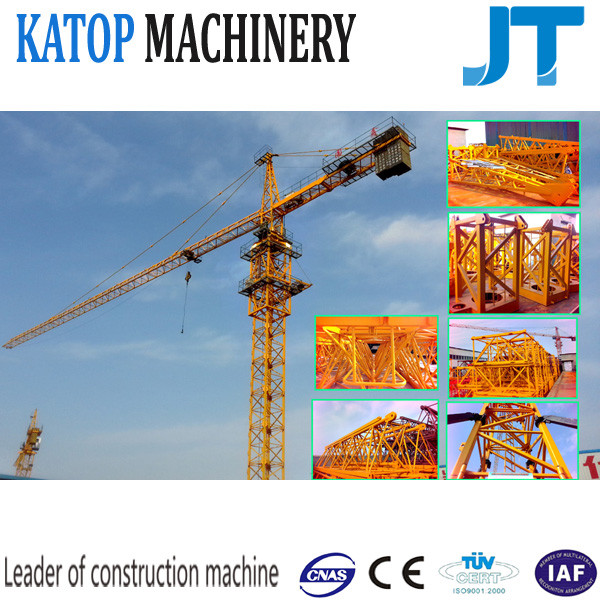

Factory supply CE approved 6t lifting TC5610 tower crane

Factory supply CE approved 6t lifting TC5610 tower crane

    • Factory supply CE approved 6t lifting TC5610 tower crane
    • Factory supply CE approved 6t lifting TC5610 tower crane
    • Factory supply CE approved 6t lifting TC5610 tower crane
  • Factory supply CE approved 6t lifting TC5610 tower crane

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Katop
    Certification: CE, ISO9001
    Model Number: QTZ63-5610 Double-gyration

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Packaging Details: Nude packed, well fixed, uninstalled
    Delivery Time: About 20~30 workdays after receipt the deposit;
    Payment Terms: 30%TT in deposit, the balance 70%TT before shipment or by LC at sight
    Supply Ability: 30units/month
    Contact Now
    Detailed Product Description

    Specifications

    1. Lifting height 40m, loading capacity 6t, long jib length 56 m

    2.Factory supply, low price

    3.Installation support

    4.Good after-sales service

    Main Technical Parameters of QTZ63-5610Tower Crane

    Tower Crane (QTZ63 5610) Rated lifting torque

    kN.m

    630

    Max. lifting capacity

    t

    6

    Working range

    m

    3-56

    Lifting Height

    Independent

    40.2

    Adhered

    151.2

    Lifting speed

    Double magnification

    m/min

    80/40

    Quadruple magnification

    38/19

    Slewing speed

    r/min

    0.637

    Trolleying speed

    m/min

    44/22

    Climbing speed

    0.4

    Min. stable descending speed

    <7

    Overall dimensions

    Foundation frame

    m

    8×8

    Overall height

    Independent

    50.892

    Adhered

    160.892

    Jib end to the swiveling center

    56.17

    Balance tip to swiveling center

    12.39

    Total weight

    Structure weight

    Independent

    t

    40.49

    Adhered

    80.87

    counterweight

    18.34

    Total motor capacity

    kW

    41.52

    Allowed operating temperature

    C

    -20-+40

    Power supply parameters

    50Hz

    -380V±10%

     Factory supply CE approved 6t lifting TC5610 tower crane

    Parameters of Mechanisms:

    mechanism

    Lifting mechanism

    M5

    Slewing mechanism

    M4

    Trolley mechanism

    M4



    Lifting machanism

    motor

    model

    YZTD225-4/8/32

    power(kW)

    24/24/5.4

    Height limiter

    model

    FKDX-G

    Steel rope

    specification

    6W19-13-1770-I

    Max traction (N)

    15000

    F

    a=2

    a=4

    Lifting speed m/min)

    80.36

    39.37

    41.05

    20.11

    Rated load capacity(t)

    1.2

    2.4

    3

    6

    Min.stable decline

    m/min

    <7

    Slewing mechanism

    motor

    model

    YZR132M-6

    power(kW)

    3.7×2

    Rotational speed(r/min)

    908

    reducer

    model

    XX4-100.168

    Transmission ration

    180

    Hydraulic coupling

    model

    YOX280A

    slewing

    moulds    m

    12

    Gear number    z

    15

    Modification coefficient

    +0.5

    Slewing speed

    r/min

    0.637

    Slewing bearing

    Slewing bearing

    model

    011·45·1250

    mould    m

    12

    Gear number    z

    118

    Jacking mechanism

    motor

    model

    Y132M-4B5

    power(kW)

    5.5

    Cylinder rated work pressure

    MPa

    25

    Max.jacking force

    t

    50

    Cylinder stock

    mm

    1600

    Locating distance

    mm

    2070

    Cylinder force

    mm

    φ160

    Cylinder piston rod diameter

    mm

    φ110

    Jacking speed

    m/min

    0.4

    Trolley mechanism

    motor

    model

    YDEJ132S-4/8

    power(kW)

    3.2/2.2

    Steel rope

    specification

    6×19-7.7-1550

    reducer

    model

    XX2-12-38

    Transmission ratio

    38

    Trolley speed

    m/min

    44/22

    The parts of Katop tower crane

    Main Parts600.jpg



    Construction site of Katop tower crane



    construction site600.jpg

    Delivering of Katop Tower Crane:

    1.Short delivery time, normally within 30workdays;

    2.All products will be well fixed;

    3.More easy wear spare parts will be attached for free;

    4.The transportation will be safe and stable;

    Factory supply CE approved 6t lifting TC5610 tower crane

    The Services of Katop Factory



    1.All of our machines will be with 1 year warranty after receipt the destination port;

    2.More easy ware spare parts will be attached for free;

    3.Oversea service are available from us, our experts will help you to install and adjust the tower crane

    in your area;

    4.Technology support for maintenance and maintenance spare parts will be supplied in time;

     images (1)



    Why Choose Our Factory?



    1. Experience. More than 10 years of experience in manufacturing tower crane and construction hoist, assured good quality.



    2. Price. We supply factory direct price, will save your cost than buy from distributors or other factories;



    3.Excellent quality. All materials from famous plants to ensure the long time use and safety, and we are one of the suppliers

     of standard mast for XCMG.



    4. Services. Professional service team can give powerful support for our products. Engineers have more than 10 years'

    experience in products and ready to solve all your problems.



    5. Innovation. Technical and management innovation guarantee our quality to be in top position in our industry.



    Our  Certification

    Factory supply CE approved 6t lifting TC5610 tower crane

    yuanxin company 600.jpg

    With more than 10 years experience of producing construction hoist and tower crane , Shandong Katop Machinery can supply you the good products with excellent quality, reasonable price and good after-sale service.
