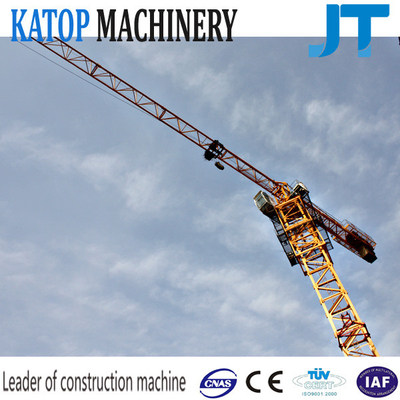

Flat top tower crane TC5010 with 5t load from Katop factory

Flat top tower crane TC5010 with 5t load from Katop factory

    • Flat top tower crane TC5010 with 5t load from Katop factory
    • Flat top tower crane TC5010 with 5t load from Katop factory
    • Flat top tower crane TC5010 with 5t load from Katop factory
  • Flat top tower crane TC5010 with 5t load from Katop factory

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Katop
    Certification: CE, ISO9001
    Model Number: TC5010

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: US$30,000.00~32,000.00
    Packaging Details: Nude packed, well fixed, uninstalled
    Delivery Time: within 10~15 workdays after receipt the deposit
    Payment Terms: 30%TT in deposit, the balance 70%TT before shipment or by LC at sight
    Supply Ability: 30units/month
    Contact Now
    Detailed Product Description
    Max.load Capacity: 5t Boom Length: 50m
    Tip Load Capacity: 1.0t

    Series: QTZ60;

    Type: Flat top tower crane;

    Work Features: 50m boom, Max.load capacity 5.0t, tip load capacity 1.0t; Independent height 30m; Attached height 120m;

    Mast section: dimension 1.615x1.615x2.50m; Main limb: ∠160x14; Type: whole frame type;

    Installation Information: bottom beam: "#" type and "+" type; with counter weight; Hydraulic jacking;

    Certificate: CE, ISO9001;

    --------------------------------------------------------------------------------------------------------------------------------------------------------------

    1. Technical Parameters

    Mechanism working level

    Lifting mechanism

    M5

    Slewing mechanism

    M4

    Traction mechanism

    M4

    Working range  m

    3

    50

    Max lifting height  m

    independent

    adhered

    30

    120

    Max. loading t 5.0

    Tip loading   t

    1.0

    Lifting mechanism

    Fall

    α=2

        α=4

    loading/speed  t/m/min

    1/71

    2/35

    2/10.8

    2/35

    4/17.5

    4/5.4

    Min.stable decline speed  m/min

    ≤4

    power         kW

    15/15/4

    Traction mechanism

    speed m/min

    25/38

    power kW

    1.5/2.2

    Slewing speed

    speed r/min

    0--0.56

    Power kW

    3.7

    Jacking mechanism

    speed m/min

    0.4

    Power kW

    4

    Working pressure MPa

    20

    Balance weight

    Max working range m

    50

    48

    42

    36

    Weight    (t)

    8.6

    8.1

    6.9

    5.7

    Total motor power      kW

    24.9(with the jacking mechanism)

    Working temperature  ℃

    -20~+40

    2. Lifting Capacity

    Flat top tower crane TC5010 with 5t load from Katop factory

    3. Appearance Dimension

    Flat top tower crane TC5010 with 5t load from Katop factory

    Flat top tower crane TC5010 with 5t load from Katop factory

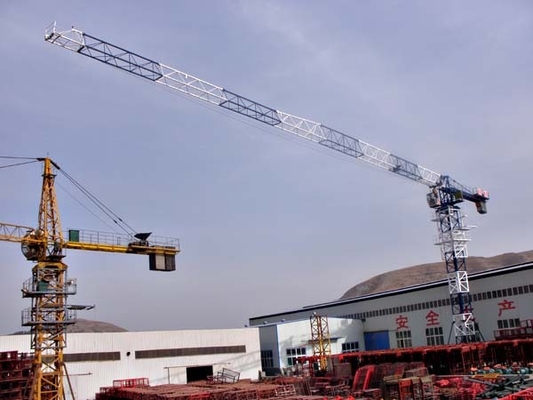

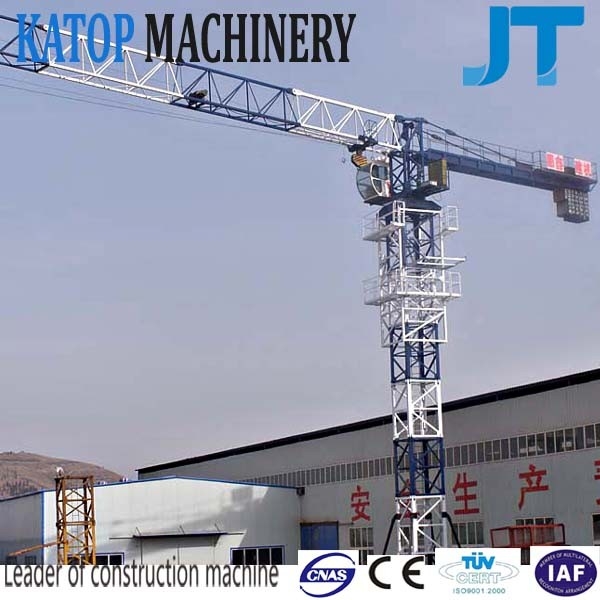

    4. Photos of Tower Crane

    Flat top tower crane TC5010 with 5t load from Katop factory

    Flat top tower crane TC5010 with 5t load from Katop factory
