Place of Origin: | Shandong, China |
Brand Name: | Katop |
Certification: | CE, ISO9001 |
Model Number: | TC5010 |
Minimum Order Quantity: | 1 UNIT |
---|---|
Price: | US$30,000.00~32,000.00 |
Packaging Details: | Nude packed, well fixed, uninstalled |
Delivery Time: | within 10~15 workdays after receipt the deposit |
Payment Terms: | 30%TT in deposit, the balance 70%TT before shipment or by LC at sight |
Supply Ability: | 30units/month |
Rated Load Capacity: | 5.0t | Boom Length: | 50m |
---|---|---|---|
Tip Load: | 1.0t |
Series: QTZ60;
Type: Flat top tower crane;
Work Features: 50m boom, Max.load capacity 5.0t, tip load capacity 1.0t; Independent height 30m; Attached height 120m;
Mast section: dimension 1.615x1.615x2.50m; Main limb: ∠160x14; Type: whole frame type;
Installation Information: bottom beam: "#" type and "+" type; with counter weight; Hydraulic jacking;
Certificate: CE, ISO9001;
-----------------------------------------------------------------------------------------------------------------------------------
1. Technical Parameters
Mechanism working level |
Lifting mechanism |
M5 |
||||||||||
Slewing mechanism |
M4 |
|||||||||||
Traction mechanism |
M4 |
|||||||||||
Working range m |
3 |
50 |
||||||||||
Max lifting height m |
independent |
adhered |
||||||||||
30 |
120 |
|||||||||||
Max. loading t | 5.0 | |||||||||||
Tip loading t |
1.0 |
|||||||||||
Lifting mechanism |
Fall |
α=2 |
α=4 |
|||||||||
loading/speed t/m/min |
1/71 |
2/35 |
2/10.8 |
2/35 |
4/17.5 |
4/5.4 |
||||||
Min.stable decline speed m/min |
≤4 |
|||||||||||
power kW |
15/15/4 |
|||||||||||
Traction mechanism |
speed m/min |
25/38 |
||||||||||
power kW |
1.5/2.2 |
|||||||||||
Slewing speed |
speed r/min |
0--0.56 |
||||||||||
Power kW |
3.7 |
|||||||||||
Jacking mechanism |
speed m/min |
0.4 |
||||||||||
Power kW |
4 |
|||||||||||
Working pressure MPa |
20 |
|||||||||||
Balance weight |
Max working range m |
50 |
48 |
42 |
36 |
|||||||
Weight (t) |
8.6 |
8.1 |
6.9 |
5.7 |
||||||||
Total motor power kW |
24.9(with the jacking mechanism) |
|||||||||||
Working temperature ℃ |
-20~+40 |
2. Lifting Capacity
3. Appearance Dimension

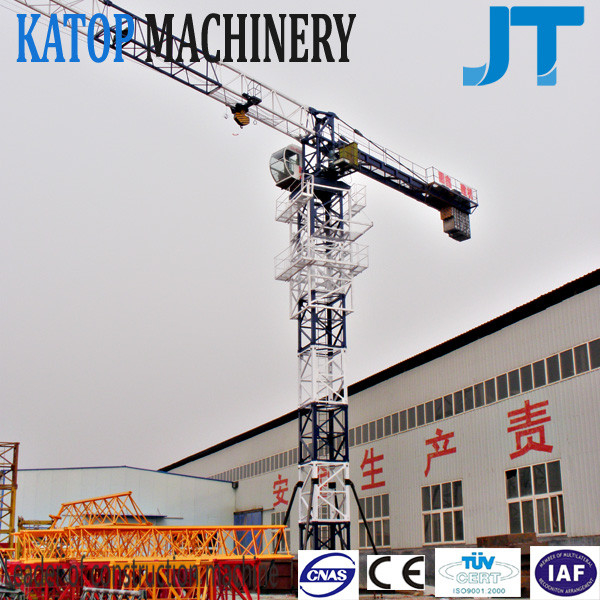

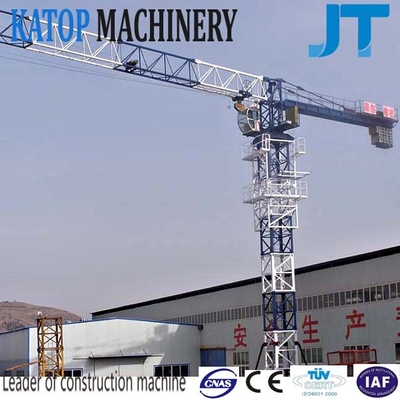

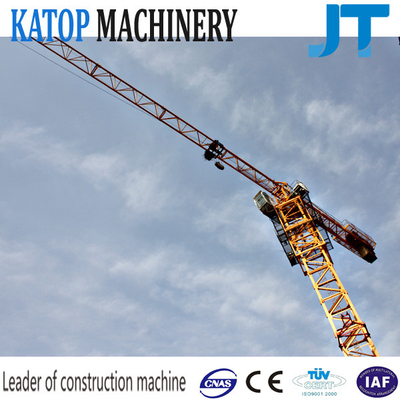

4. Photos of Tower Crane
